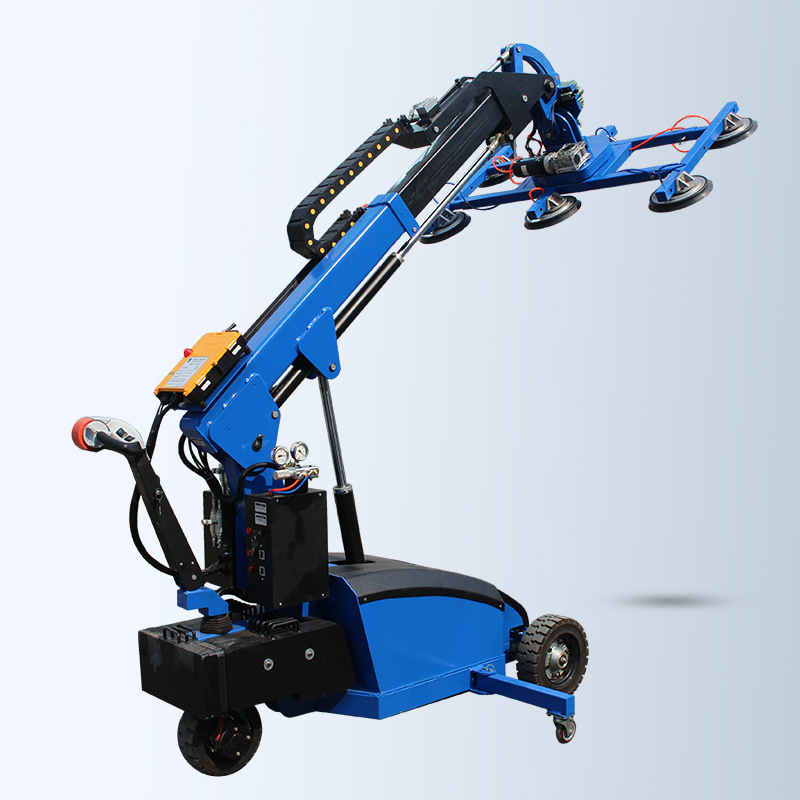

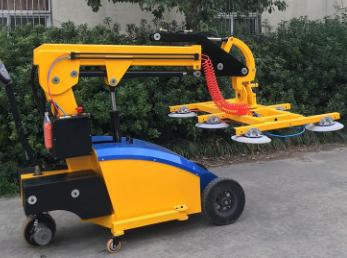

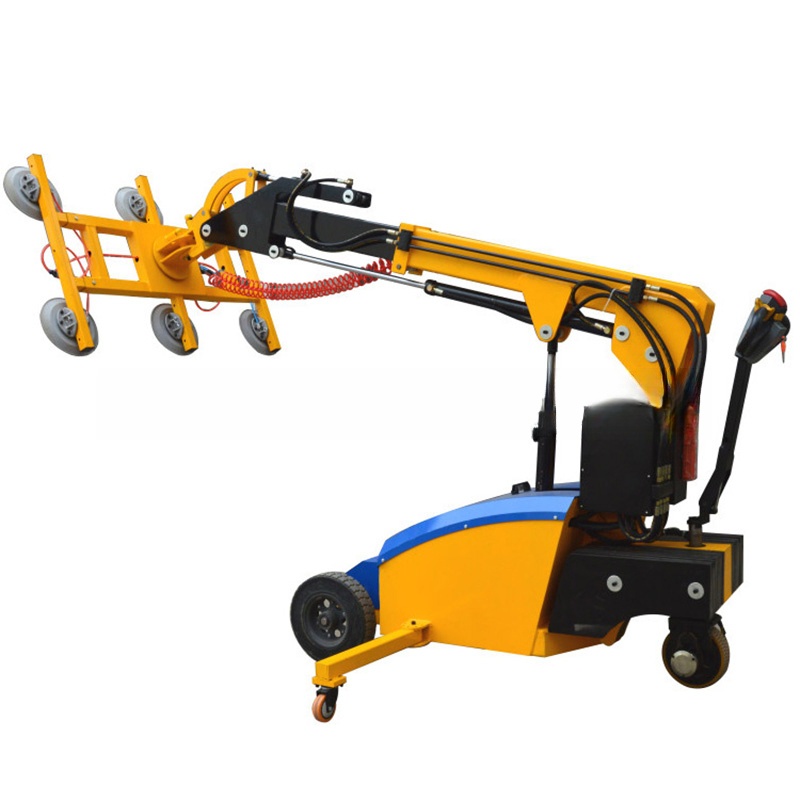

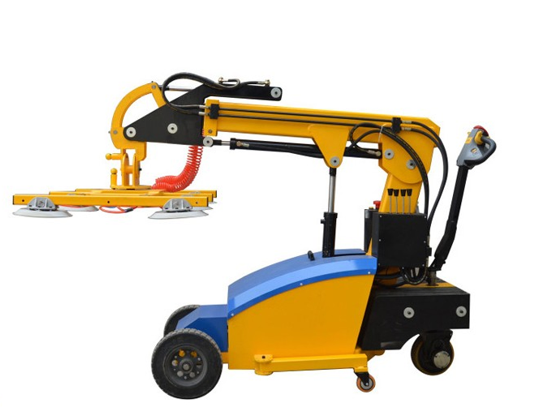

Engineered for efficient glass transportation and installation, this intelligent glass robot manipulator ensures precision and safety in curtain wall and glazing applications.
Features a dual vacuum system design to guarantee operational safety during glass handling.
Equipped with large wheels and automatic movement for flexible and reliable operation on outdoor or complex job sites.
Offers multi-dimensional control including 360° manual rotation and 130° hydraulic tilting for precise positioning.
Powered by a high-capacity 24V DC system, providing up to 20 hours of continuous operation on a single charge.
The robust frame and intelligent control system are optimized for handling large glass panels up to 3660x2440mm.
Maximum Load Capacity: 300kg (fully extended) to 800kg (retracted), depending on model.
Maximum Lifting Height: 3500mm from ground to suction frame center.
Maximum Arm Extension: 650mm, with a total reach of 1350mm from the front wheels.
Battery System: 2x 12V DC batteries (80A to 210A models available).
Drive Unit: 1.2KW 24V DC brushless motor for rear-wheel drive and steering.
Suction Frame Dimensions: 1800mm (Length) x 800mm (Width).
